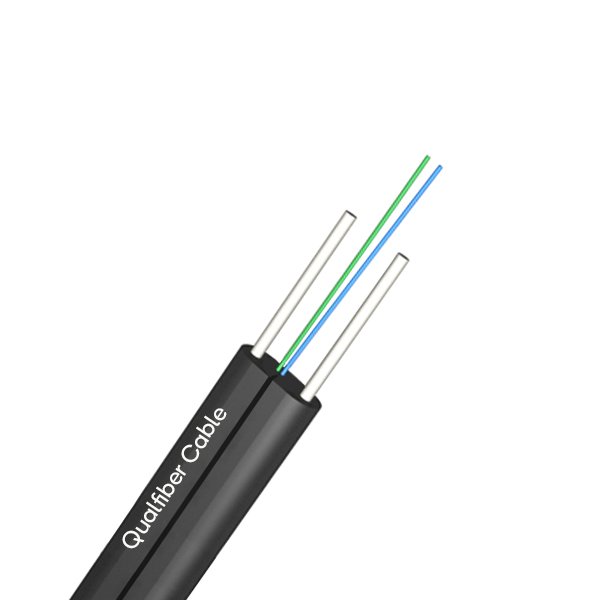

Fiber Optic Drop Cable access to the use of dish-shaped optical cable (indoor wiring) is the optical communication unit (fiber) in the center, placed on both sides of two parallel non-metallic reinforcement (FRP) or metal reinforcing member, and finally extrusion black or color poly Vinyl chloride (PVC) or LSZH (LSZH, low smoke, halogen-free, flame retardant) jacket.
Color:
Description
Cable construction details
| Number of fiber | 1~4core | |||||||
| Central strength member | Material | FRP | ||||||
| size | 2*0.52mm | |||||||
| Outer sheath | material | LSZH | ||||||
| diameter | 2.0±0.2mm | |||||||
| Cable size (Height * width) | 2.0(±0.1) mm × 3.0(±0.2)mm | |||||||
| Cable weight | 8.0KG±1KG | |||||||
Cable Mechanical characteristic
| Items | Description | ||||||
| Installation Temperature range（℃） | -20+70 | ||||||
| Operation and transport temperature（℃） | -20+70 | ||||||
| Min Bending Radius(mm) | Long term | 10D | |||||
| Min Bending Radius(mm) |
Short term | 20D | |||||
| Min allowable Tensile Strength(N) |
Long term | 150 | |||||
| Min allowable Tensile Strength(N) |
Short term | 300 | |||||
| Crush Load (N/100mm) | Long term | 1000 | |||||
| Crush Load (N/100mm) | short term | 1200 | |||||
Fiber characteristics
| Fiber style | Unit | SM G652D |
SM G657A1 |
SM G657A2 |
||
| condition | nm | 1310/1550 | 1310/1550 | 1310/1550 | ||
| attenuation | dB/km | ≤0.36/0.23 | ≤3.5/0.21 | ≤3.5/0.21 | ||
| Dispersion | 1310nm | Ps/(nm*km) | ≤18 | ≤18 | ≤18 | |
| 1550nm | Ps/(nm*km) | ≤22 | ≤22 | ≤22 | ||
| Zero dispersion wavelength | nm | 1312±10 | 1312±10 | 1300-1324 | ||
| Zero dispersion slope | ps/(nm²×Km) | ≤0.091 | ≤0.090 | ≤0.092 | ||
| PMD Maximum Individual Fiber | [ps/√km] | ≤0.2 | ≤0.2 | ≤0.2 | ||
| PMD Design Link Value | ps/(nm²×Km) | ≤0.08 | ≤0.08 | ≤0.08 | ||
| Fiber cutoff wavelength λc | nm | ≧1180,≤1330 | ≧1180,≤1330 | ≧1180,≤1330 | ||
| Cable cutoff wavelength λcc | nm | ≤1260 | ….. | ….. | ||
| MFD | 1310nm | um | 9.2±0.4 | 9.0±0.4 | ||
