Automatic identification for both GPON and EPON network, 1GE+3FE WAN ports, 1POTS for telephone, SC-APC port for fiber assessment.
Color:
1. Overview

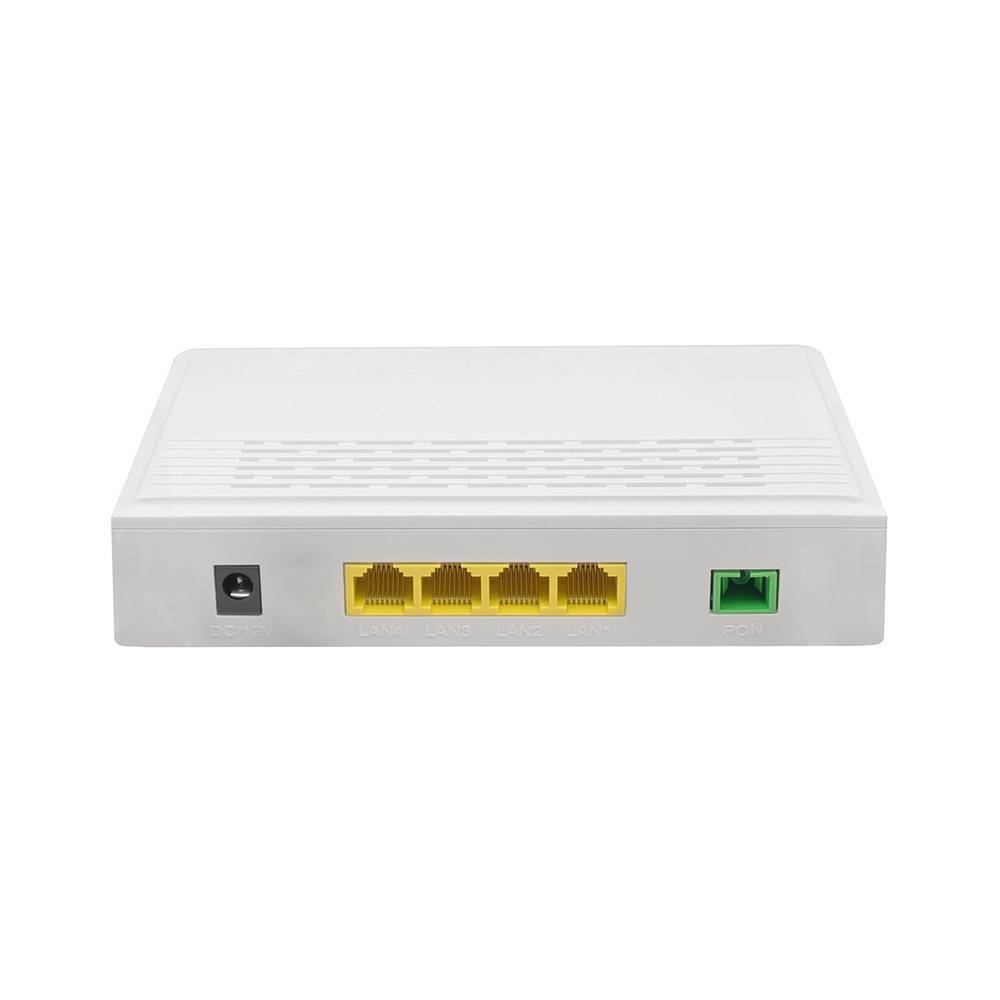

- 1G3F+WIFI series is designed as HGU(Home Gateway Unit) in deferent FTTH solutions by Qualfiber, The carrier-class FTTH application provides data service access.
- 1G3F+WIFI series is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON when it access to the EPON OLT or GPON OLT.
- 1G3F+WIFI series adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3,0 and GPON Standard of ITU-TG.984.X
- 1G3F+WIFI series is designed by Realtek chipset.
2. Functional Feature
- Support EPON and GPON, and switch mode automatically
- Support ONU auto-discovery/Link detection/remote upgrade of software
- WAN connections support Route and Bridge mode
- Route mode supports PPPoE/DHCP/ static IP
- Support WIFI Interface and multiple SSID
- Support QoS and DBA
- Support port Isolation and port VLAN configuration
- Support Firewall function and IGMP snooping multicast feature
- Support LAN IP and DHCP Server configuration;
- Support Port Forwarding and Loop-Detect
- Support TR069 remote configuration and maintenance
- Specialized design for system breakdown prevention to maintain stable system
3. Hardware Specification
| Technical item | Details |
| PON Interface | 2.5G GPON Class B+/C+/C++/C+++ & 1.25G EPON PX20+/PX20++/PX20+++) |
| Receiving sensitivity: ≤-27dBm | |
| Transmitting optical power: 0~+4dBm | |
| Transmission distance: 20KM | |
| Wavelength | Tx: 1310nm, Rx: 1490nm |
| Optical Interface | SC/APC Connector |
| LAN Interface | 1 x 10/100/1000Mbps and 3 x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
| Wireless | Compliant with IEEE802.11b/g/n, |
| Operating frequency: 2.400-2.4835GHz | |
| support MIMO, rate up to 300Mbps, | |
| 2T2R,2 external antenna 5dBi, | |
| Support: Multiple SSID | |
| Channel: Auto | |
| Modulation type: DSSS, CCK and OFDM | |
| Encoding scheme: BPSK, QPSK, 16QAM and 64QAM | |
| LED | Status of POWER, LOS, PON, SYS, LAN1~LAN4 ,WIFI, WPS, Internet, |
| Push-Button | 3,For Function of Reset, WLAN, WPS |
| Operating Condition | Temperature: 0℃~+50℃ |
| Humidity: 10%～90%（non-condensing） | |
| Storing Condition | Temperature: -30℃~+60℃ |
| Humidity: 10%~90%（non-condensing） | |
| Power Supply | DC 12V/1A |
| Power Consumption | ≤6W |
| Dimension | 155mm×92mm×34mm（L×W×H） |
| Net Weight | 0.24Kg |
4. Panel lights Introduction
|
Pilot Lamp |
Status |
Description |
|
PWR |
On |
The device is powered up. |
|
Off |
The device is powered down. | |
|
PON |
On |
The device has registered to the PON system. |
|
Blink |
The device is registering the PON system. | |
|
Off |
The device registration is incorrect. | |
|
LOS |
Blink |
The device doses not receive optical signals. |
|
Off |
The device has received optical signal. | |
|
SYS |
On |
The device system runs normally. |
|
Off |
The device system runs abnormally. | |
|
INTERNET |
Blink |
The device network connection is normal. |
|
Off |
The device network connection is abnormal. | |
|
WIFI |
On |
The WIFI interface is up. |
|
Blink |
The WIFI interface is sending or/and receiving data (ACT). | |
|
Off |
The WIFI interface is down. | |
|
WPS |
Blink |
The WIFI interface is securely establishing a connection. |
|
Off |
The WIFI interface does not establish a secure connection. | |
|
LAN1~LAN4 |
On |
Port (LANx) is connected properly (LINK). |
|
Blink |
Port (LANx) is sending or/and receiving data (ACT). | |
|
Off |
Port (LANx) connection exception or not connected. |
5. Application
l Typical Solution：FTTO(Office)、 FTTB(Building)、FTTH(Home)
l Typical Application(optional)：INTERNET、IPTV、VOD、VoIP、IP Camera etc.
Figure: All function Optional Application Diagram
6. Ordering information
|
Product Name |
Product Model |
Descriptions |
|
XPON ONU 1G1F+WIFI |
QF-HX103W |
1x10/100/1000Mbps Ethernet, 3 x 10/100Mbps Ethernet , 1 SC/APC Connector, 2.4GHz WIFI, Plastic Casing, External power supply adapter |
