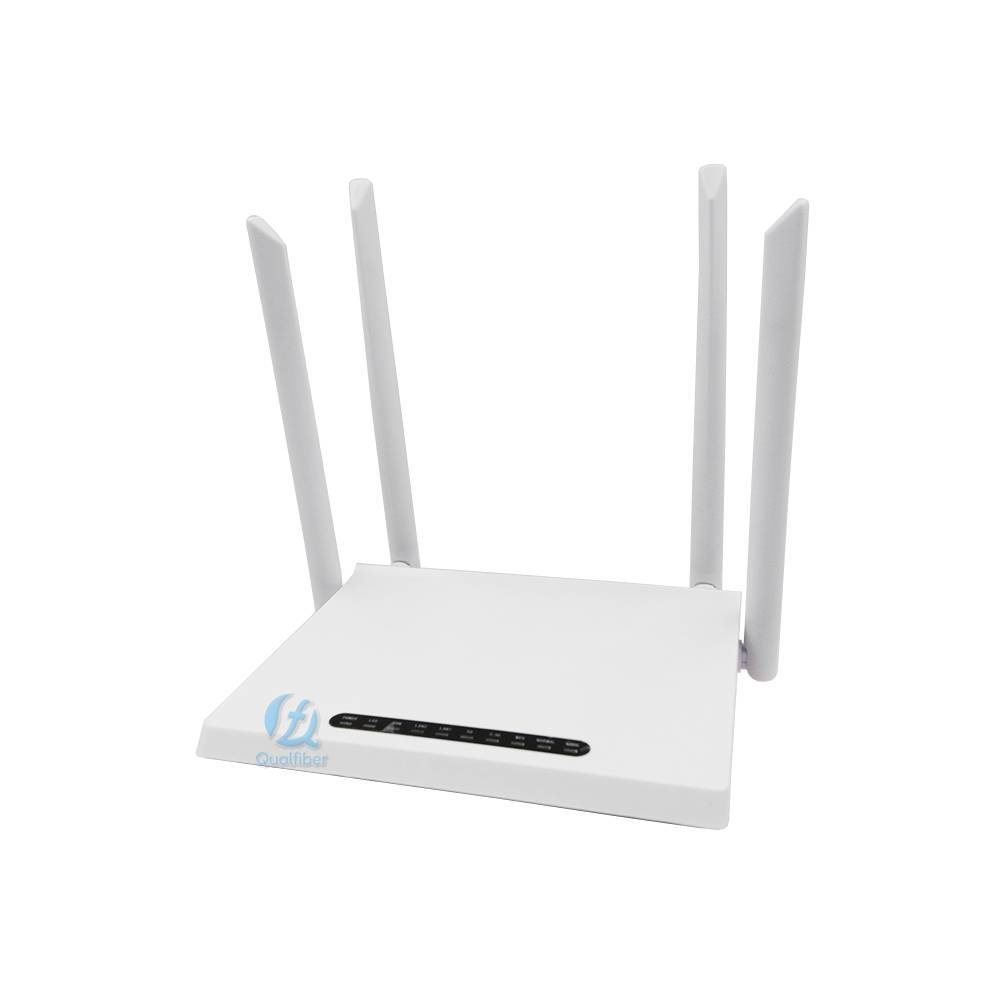

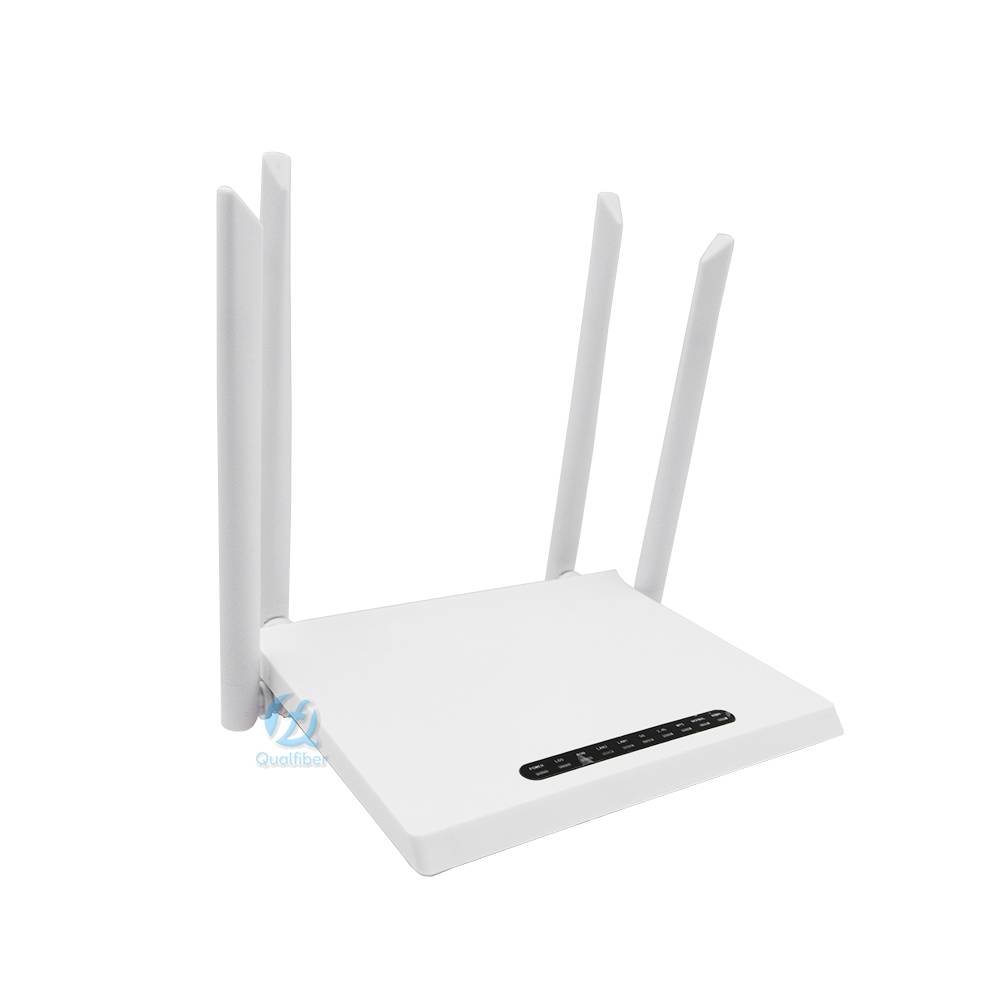

QF-CXCA200WP is an optic network unit for the xPON protocol network. It can work in both GPON and EPON networks. 2GE LAN ports, wifi 802.11 b/g/n, or ac, (ax customized). When this device well connected, the system will auto-recognize the operating GPON or EPON. Model Name: QF-CXCA200WP Model Series(chip) No. CX1012R007 This xPON ONU is a cost-effective type, which could work with many GPON OLT and EPON OLT, such as Huawei, ZTE, Fiberhome, Alcatel, Nokia.
Color:
XPON 2GE+1200AC+POTS
Overview
l 2GE+1200AC+POTS is designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH application provides data and video service access.
l 2GE+1200AC+POTS is based on mature and stable, cost-effective XPON technology. It could switch automatically into EPON mode or GPON mode when access to the EPON OLT and GPON OLT.
l 2GE+1200AC+POTS adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X
l 2GE+1200AC+POTS is designed by Realtek chipset 9607C.
Feature
l Supports GPON and EPON auto detection
l Support Rogue ONT detection
l Support Route mode PPPoE/DHCP/Static IP and Bridge mixed mode
l Support NAT, Firewall function.
l Support Internet, IPTV and VoIP services automatically bound to ONT ports
l Support Virtual server, DMZ, and DDNS, UPnP
l Support Filtering based on MAC/IP/URL
l Support Access Control
l Support SIP protocol for VoIP Service
l Support 802.11 b/g/n, 802.11ac WIFI(2×2 MIMO) function and Multiple SSID
l Support NAT, Firewall function.
l Support Flow & Storm Control , Loop Detection and Port Forwarding
l Support IPv4/IPv6 dual stack and DS-Lite
l Support IGMP transparent/snooping/proxy
l Support TR069 Remote Configuration and maintenance
l Integrated OAM remote configuration and maintenance function
l Compatible with popular OLT (HW, ZTE, FiberHome…)
Specification
|
Technical Item |
Details |
| PON interface |
1 G/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm SC/UPC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
| LAN interface |
2 x 10/100/1000Mbps auto adaptive Ethernet interfaces Full/Half, RJ45 connector |
| WIFI Interface |
Compliant with IEEE802.11b/g/n/ac 2.4GHz Operating frequency: 2.400-2.483GHz, rate up to 300Mbps 5.0GHz Operating frequency: 5.150-5.825GHz, rate up to 867Mbps Support 2*2MIMO, 5dBi external antenna. Support: multiple SSID TX power: 11n–22dBm/11ac–24dBm |
| POTS Port |
RJ11 Max 1km distance Balanced Ring, 50V RMS |
| LED |
8 LED, For Status of PWR、LOS、PON、LAN1、LAN2、2.4G、5.8G、FXS |
| Push-Button |
3 button for Function of Power on/off, Reset, WPS |
| Operating condition |
Temperature : 0℃～+50℃ Humidity :10%～90%（non-condensing） |
| Storing Condition |
Temperature : -40℃～+60℃ Humidity :10%～90%（non-condensing） |
| Power supply |
DC 12V/1A |
| Power Consumption |
<6W |
| Net Weight |
<0.3kg |
Panel lights and Introduction
|
Pilot Lamp |
Status |
Description |
| 2.4G | On | 2.4G WIFI up |
| Blink | 2.4G WIFI is sending or/and receiving data (ACT). | |
| Off | 2.4G WIFI down | |
| 5.8G | On | 5G WIFI up |
| Blink | 5G WIFI is sending or/and receiving data (ACT). | |
| Off | 5G WIFI down | |
| PWR | On | The device is powered up. |
| Off | The device is powered down. | |
| LOS | Blink | The device doses not receive optical signals or with low signals. |
| Off | The device has received optical signal. | |
| PON | On | The device has registered to the PON system. |
| Blink | The device is registering the PON system. | |
| Off | The device registration is incorrect. | |
| LAN1~LAN2 | On | Port (LANx) is connected properly (LINK). |
| Blink | Port (LANx) is sending or/and receiving data (ACT). | |
| Off | Port (LANx) connection exception or not connected. | |
| FXS | On | Telephone has registered to the SIP Server. |
| Blink | Telephone has registered and data transmission (ACT). | |
| Off | Telephone registration is incorrect. |
Application
l Typical Solution：FTTO(Office)、 FTTB(Building)、FTTH(Home)
l Typical Service：Broadband Internet access, IPV, VOD, video surveillance, CATV etc.
Ordering information
|
Product Name |
Product Model |
Descriptions |
|
2GE+AC+POTS XPON |
Model Name:
QF-CXAC200WP Model Series: CX1012R007 |
2*10/100/1000M, 1 GPON interface, RJ11 interface, support WIFI 5G&2.4G, plastic casing, external power supply adapter |
