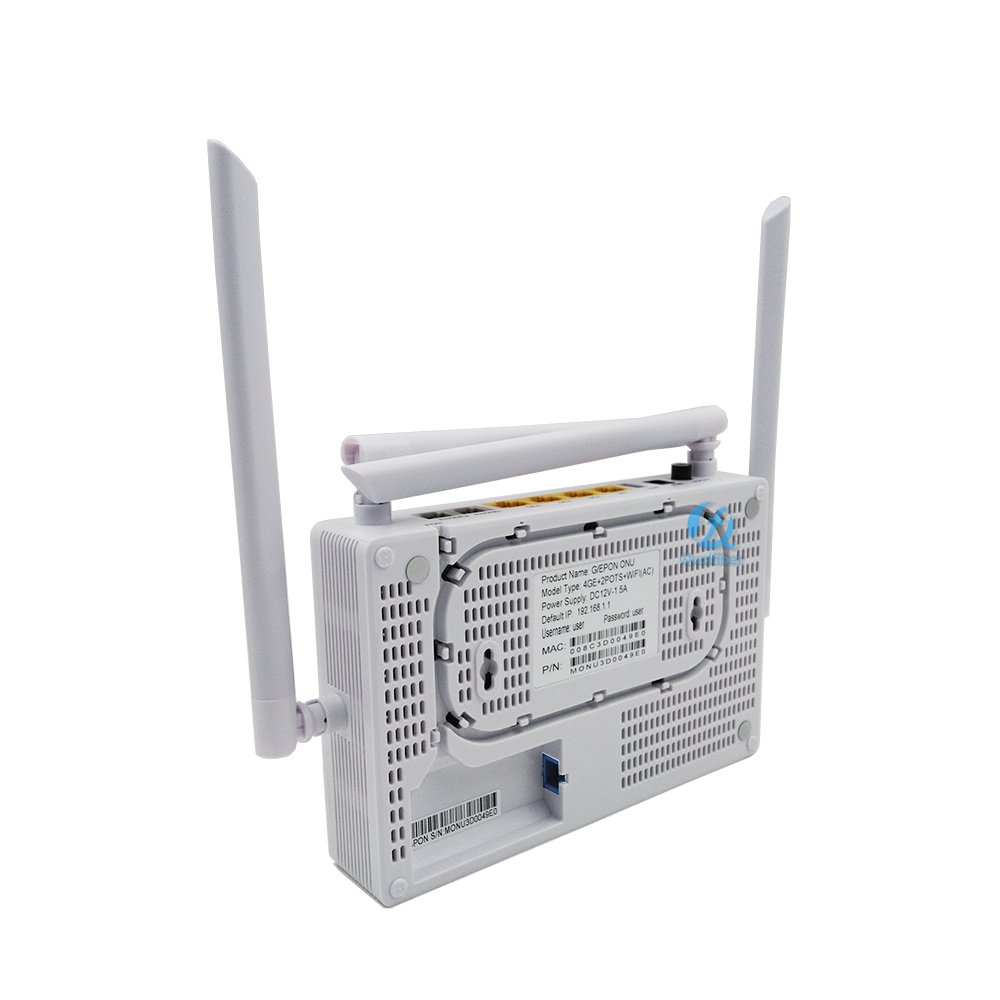

XPON 4GE LAN Ports 1200AC WiFi with 2 POTS for Telephone

The XPON ONT 4GE+2POTS+WIFI(AC) is a series of ITU-T G.984.x based and IEEE802.3ah based XPON HYBRID ONU designed for home and office users. Its uplink interface is a 1*SC/APC or SC/UPC G/EPON port that supports 2.5G downstream and 1.25G upstream bandwidth for GPON and supports 1.25G downstream and 1.25G upstream bandwidth for GEPON. It can access GEPON/GPON OLTs. It offers 4 Gigabit Ethernet ports for LAN. The ONU also offers 2* FXS ports and a 1200Mbps Wi-Fi Router, providing a high-quality voice and an excellent Wi-Fi experience for subscribers. Built for FTTx deployments, it supports powerful home gateway/CPE features, such as Multiple WAN, QoS, VLAN, Firewall, ACL, etc. It is a high-end Internet Data, Voice, and Wi-Fi all-in-one GEPON / GPON ONU for ISPs deploying Triple Play networks over a single fiber.


Product Detail

Main Characters

n Both ITU-T G.984.x GPON and IEEE802.3ah GEPON standard,

n IEEE802.11ac 867Mbps + IEEE802.11n 300Mbps Wi-Fi Router for Excellent Wi-Fi experiences

n Offers 1* SC/APC or SC/UPC GPON / GEPON WAN port, supports 1.25G upstream and 2.5G / 1.25G downstream

n Offers 4 * Gigabit Ethernet LAN ports, wire-speed data transmission

n Offers 2*FXS ports for high quality Voice over IP deployments.

n AES 128-bit encrypted and key switching, enhancing transmission security

n Layer 2 Switching, support 802.1Q VLAN, 802.1P QoS, Bandwidth Control, Spanning Tree, etc

n Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc

n Port Binding, different LAN ports can be assigned with different WAN services

n Max 1:128 Fiber ration, max transmission distance can reach 20km

n Max 1:64 Fiber ratio for GEPON, max transmission distance can reach 20km

n Support FEC (Forward Error Correction), ensures high reliable and precise data transmission

n Support Dynamic Bandwidth Allocation (DBA), Smarter bandwidth assignment and usage.

n Support OMCI and TR069 Management, manage subscribers remotely.

n Supports IPv4 and IPv6, highly applicable in both IP type based networks.



 Video



GPON Parameters

ITU-T G.984.x GPON,built-in with a -30dBm Optical BOSA ,

SC/UPC or SC/APC connector optional

1310nm upstream & 1490nm downstream

Support G.984.1 General Characteristics

Support G.984.2 Physical Media Dependent (PMD) layer Specification

Support G.984.3 Transmission convergence layer Specification

GPON transceiver transmitting power: 0.5-5dbm,

Optical receiving sensitivity: -30dBm

Transmission wavelength: Upstream: 1310nm / Downstream: 1490nm

Support 1:128 Fiber Ratio at 20km transmission distance.

Fiber Transmission cable: G.652 Single mode optical fiber cable

Configurable AES decryption on downstream payload.

Configurable FEC on both upstream and downstream payloads.

Multi-Application Processor queues for dedicated connections for in-band.

Enhanced GPON debug and diagnostic functions.

Support up to 40 Transmission Container (T-Cons)

Support 256 bidirectional GEMport IDs

Support NSR/SR Dynamic Bandwidth Allocation (DBA)



Home Gateway/CPE Features

Multi-WAN, support up to 8 WAN connections
Support Route and/or Bridged WAN

Port Binding, Data/VoIP/IPTV services can be bound to different LAN ports
Configurable VLAN ID for each WAN
Configurable QoS queues for each WAN
Multi-services bound to the same WAN



Networking Features

MAC Learning, 2K MAC address table
Bridged or Route network mode

Support RIP v1, v2 for routing

Static Route, Dynamic Route, DNS Proxy,
IPv4 & IPv6 TCP, UDP, RTP, SNTP, NAT, DHCP, DNS IEEE802.1Q VLAN, port VLAN

IEEE802.1x, MAC, IP, or TCP/UDP based ACLs

Port Bandwidth Control,IEEE802.3x flow control
Storm Control: Broadcast/Multicast/unknown unicast, ARP
Port Isolation, port Mirror, Auto MDI/MDIX

IEEE802.1d STP, port Loop detection

IGMP v2, v3 &IGMP Snooping for IPv4
MLD v2, v3 & MLD Snooping for IPv6



GEPON Parameters

IEEE802.3ah GEPON standard, support standard OAM

CTC 2.1, 3.0 China Telecom GEPON standard

GEPON BOSA built on board,

SC/APCor SC/UPC connector optional

1310nm wavelength at upstream

1490nm wavelength at downstream

GEPON transceiver sending power: 0-4dBm,

Optical receiving sensitivity: -28dBm

1:64 Fiber Ratio at 20km transmission distance.

Fiber Transmission cable: G.652 Single mode optical fiber cable

Support 1 LLID (Logical Link Identifier)

Support 1 LOID (Logical ONU Identifier)

Support Triple Churning Encryption algorithm

Support NSR/SR Dynamic Bandwidth Allocation (DBA)

Support Forward Error Correction (FEC)

4 QoS queues & SP Dispatching Algorithm over PON

Maximum 1.25Gbps Downlink / 1.25Gbps Uplink

Support Dying Gasp



Hardware Parameters

Built on powerful GPON SoC, Realtek RTL9607C,900Mhz CPU covered with cooling unit.

Support Hardware NAT.

come with a 1Gb 16-bit DDR3 SDRAM

come with a 1Gb Nand Flash

1*GPON SC/APC or SC/UPC port,

2.5G downstream, 1.25G Upstream
4* 10/100/1000Base-Tx Gigabit Ethernet ports

1*300Mbps Wi-Fi Router,

1*867Mbps Wi-Fi Router

4*5dBidirectional external antennas

2* FXS ports, support analog phones

IEEE802.3x flow control Full duplex and half duplex,

LED Lights: PWR,PON,Los,Internet,VoIP1-2,GE1-4, 2.4G Wi-Fi, 5G Wi-Fi, WPS

External power supply, DC 12V,1A-1.5A.



VoIP Parameters

Offers 2* FXS ports for Phone connections

2 Calls can be made/received simultaneously

SIP V1, V2 (RFC3261, RFC3262, RFC3264, RFC3265)

SIP & H.248, support registering 2 SIP accounts

G.711, G.723.1, G.729A-8kbps, G.726, G. 722, ILBC voice codes

DTMF Tone Detection, DTMF Tone Relay,

Multiple Calling Tone, FSK Caller ID

Calling line Identification Presentation

Calling line Identification Restriction

Call forwarding, call transfer, call hold, three-way conference, etc

QoS and TOS to ensure voice packets pass through in priority

Support RFC62 Echo protocol

Support Digital Map configuration



300Mbps + 867Mbps Wi-Fi Router Features

IEEE802.11ac867M Wi-Fi, 5Ghz

IEEE802.11n 300M Wi-Fi, 2.4Ghz

BandSteering and BeamForming

5GHz and 2.4GHz dual band connections

802.11ac and 802.11n Wi-Fi Clients
2*5dBidirectional External antennas for 802.11ac

2*5dBi directional External antennas for 802.11n
4 Gigabit Ethernet ports, wired speed transmission

Support 4-IN-4-OUT, Max 1200Mbps Wi-Fi throughput

Support WDS Wi-Fi bridge
Wi-Fi Transmission Distance: 100m for indoors,

150m for outdoors

WPS one-key protection over your Wi-Fi network
Support DHCP, Static IP and PPPoE

DHCP Server, DHCP Relay, DHCP Client, Static IP assignation

Static Routing from source IP to destination IP

Firewall, NAT, NAPT, UPnP

DDNS, DMZ Host, port Forwarding

64/128 bit WEP, IEEE802.1x, WPA and WPA2 authentications

Max 4 SSID broadcasting, Hidden SSID

Automatically choose the best signal channel

STA mutual isolation and ACL table based on MAC Accesses

Wi-Fi Multimedia (WMM), enhanced QoS for multimedia packets





Management Features

Serial interface maintenance using UART

Web UI Management
OAM & NMS Management

CLI command line management
FTP/TFTP/HTTP Auto Provision Management TR069 ACS management



QoS

IEEE802.1P QoS, DSCP, TOS:
SP, WRR, SP+WRR dispatching Algorithm
Source & DST-MAC based QoS
VLAN ID, VLAN Priority based QoS
Source DST-IP based QoS



Hardware Interfaces

1*GPON SC/APC or SC/UPC port 4*5dBi directional external antennas
4*10/100/1000Base-Tx GE port 1*Reset button
1*PWR On/Off Switch button 1*USB port
2*FXS VoIP port 1*Wi-Fi on/off button
1*Power Supply Jack 1*WPS button
14 LEDs Indicators Power, PON, LOS, Internet, VoIP1, VoIP2, GE1-GE4, 2.4G/5GWi-Fi,WPS, USB



Specification Table

Standards IEEE 802.3,IEEE 802.3u, IEEE802.3ab. IEEE 802.3x, IEEE802.1Q, IEEE802.1P, IEEE802.1D, IEEE802.11b/g/n, IEEE802.11ac, ITU-T G.984.1, ITU-T G.984.2, ITU-T G.984.3, ITU-T G.984.4
Topology Star Topology
Uplinkport 1*GEPON / GPON WAN port, SC/UPC Connectors or SC/APC connectors optional
Transmission distance Up to 20Km
Downlink ports 4*10/100/1000Base-Tx Gigabit Ethernet ports
VoIP Ports 2*FXS ports
Wi-Fi IEEE802.11b/g/n 300Mbps + IEEE802.11ac 867Mbps Wi-Fi
LED Indicators Power,PON,LOS,Internet, VoIP1, VoIP2, GE1-GE4, Wi-Fi, WPS
Ethernet Cable 10Base-Tx: UTP category 3, 4,5, up to 100m100Base-Tx: UTP category 5, up to 100m

1000Base-Tx: UTP category 5, 5E, 6, up to 100m

Fiber Cable 8.3μm, 8.7μm, 9μm and 10μm single mode fiber cable
Power Supply AC110-240V Input,DC12V, 1A-1.5A output External Power Supply, 4KV Surge Protection
 Temperature& Humidity   Temperature Humidity
Working 0 to 45℃ 10% – 90%
Standby -40 to 70℃ 5% – 90% RH
