Mini-Splitter Module can achieve 0.9mm direct output through loose tube fiber optic multi-channel without using splitter. It is small and easy to use.We provide whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements
Color:

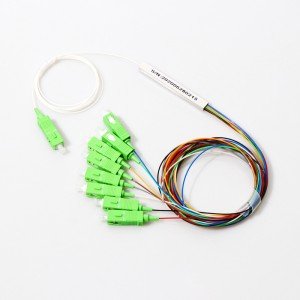

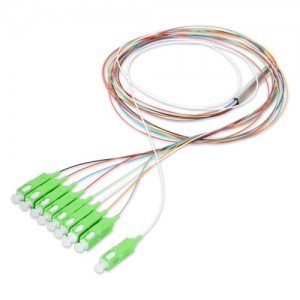

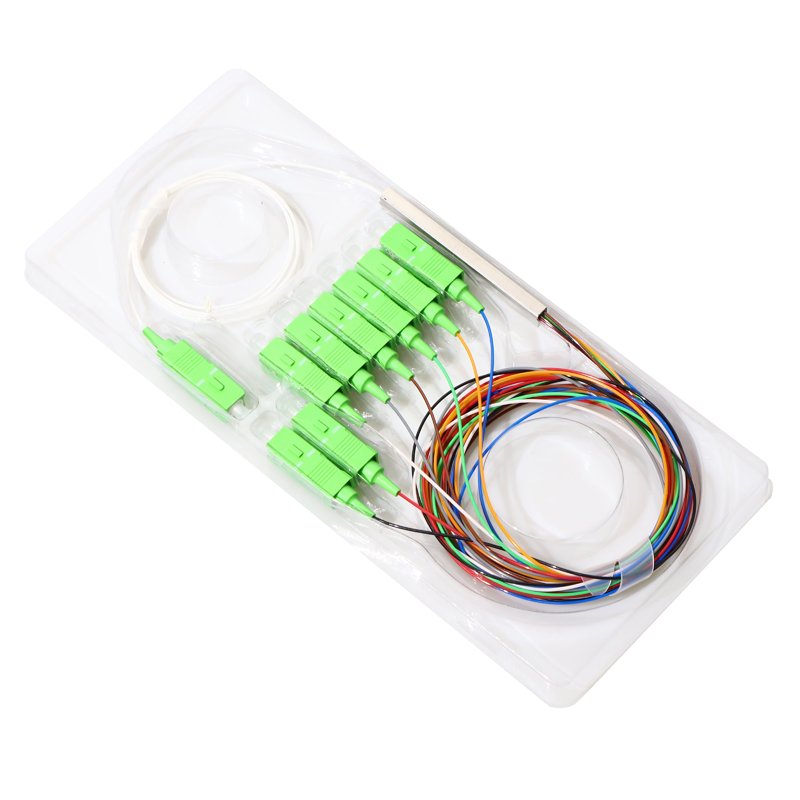

Steel tube type with SC/APC Connector 1*8 Optical Fiber PLC Splitters
Planar waveguide light optical distributor (PLC Splitter), is a kind of planar waveguide integrated optical device, it can be 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used 1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive optical network access technology FTTP fiber network system, broadband passive optical optical distributor (POS) use. Including 1×2,1×4,1×8,1×16,1×32,1×64, and 2×2,2X4,2X8,2X16,2X32,2X64 type.
Planar waveguide light optical distributor (PLC Splitter), is a kind of planar waveguide integrated optical device, it can be 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive optical network access technology FTTP fiber network system, broadband passive optical distributor (POS) use.
APPLICATION
FTTx Systems
Digital, hybrid and AM-Video systems
LAN,WAN and Metro Networks
CATV systems
Other applications in fiber optic systems
FEATURES
Low Insertion loss and Low PDL
Uniform power splitting
High reliability
Excellent environmental stability
Compact size and various package
Types
1. Basic type PLC splitter
2. SFF type PLC splitter
3. 900um Fan-out Type PLC Splitter
4. Cassette type PLC splitter Module
5. Rack type PLC splitter Module
6. Tray assembly PLC splitter Module
7. Flat Quick-Connect Termination Type PLC Splitter Module
|
Parameter/Type
|
Nx2(N=1or2)
|
Nx4(N=1or2)
|
Nx8(N=1or2)
|
Nx16(N=1or2)
|
Nx32(N=1or2)
|
Nx64(N=1or2)
|
|
Fiber
|
9/125 um SMF-28e or customer appoint
|
|||||
|
Operating Wavelength(nm)
|
1260~1650(nm)
|
|||||
|
Insertion Loss
|
≤3.9dB
|
≤7.1dB
|
≤10.3dB
|
≤13.3dB
|
≤16.3dB
|
≤19.8dB
|
|
Loss Uniformity(dB)
|
≤0.6dB
|
≤0.6dB
|
≤0.8dB
|
≤1.2dB
|
≤1.5dB
|
≤2.0dB
|
|
Polariation Dependent Loss
|
≤0.15dB
|
≤0.15dB
|
≤0.2dB
|
≤0.2dB
|
≤0.2dB
|
≤0.3dB
|
|
Return Loss
|
UPC≥50dB APC≥60dB
|
|||||
|
Directivity
|
≥55dB
|
|||||
|
Working Temperature(℃)
|
-40°C to +85°C
|
|||||
