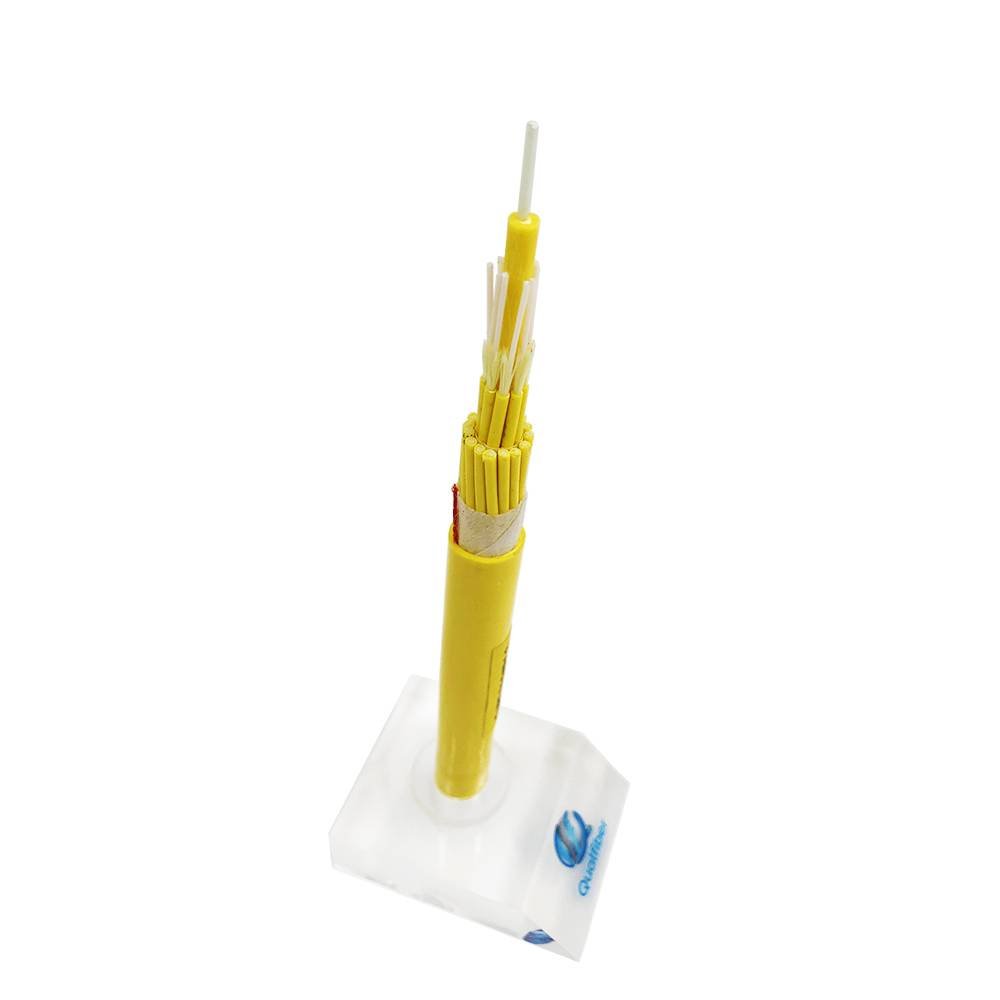

GJBFJV fiber optic cable 24core indoor distribution break-out cable. Multi-purpose break-out cable use simplex cable (2.0mm tight fiber, aramid yarn as strength member ) as a subunit. A fiber-reinforced plastic (FRP) is located in the center of the core as s non-metallic strength member. The subunits are stranded together around the cable core. Then the cable is completed with the LSZH jacket.
Color:
Description
GJBFJV fiber optic cable 24core indoor distribution break-out cable. Multi-purpose break-out cable use simplex cable (2.0mm tight fiber, aramid yarn as strength member ) as a subunit. A fiber-reinforced plastic (FRP) is located in the center of the core as s non-metallic strength member. The subunits are stranded together around the cable core. Then the cable is completed with the LSZH jacket.
Technical data
| No. of cable | 24 | |||
| Fiber Model | G.652D | |||
| Design(StrengthMember+Tube) | 1+9+15 | |||
| Central Strength Member | Material | MDPE | ||
| Diameter（±0.06）mm | 5.0 | |||
| Tight lines | Material | PVC | ||
| Thickness（±0.03）mm | 0.32 | |||
| Diameter（±0.06）mm | 0.9 | |||
| Strength Member | Material | Aramid Yarn | ||
| Inner Sheath | Material | LSZH | ||
| Thickness（±0.2）mm | 0.5 | |||
| Diameter（±0.2）mm | 2.5 | |||
| Outer Sheath | Material | LSZH | ||
| Thickness（±0.2）mm | 1.7 | |||
| Cable Diameter（±0.2）mm | 18.4 | |||
| Cable Wetght（±10）kg/km | 325 | |||
| Attenuation | 1310nm | dB/km | 0.8 | |
| 1550nm | 0.6 | |||
| Allowable Tensile Strength | Short Term | N | 1320 | |
| Long Term | 400 | |||
| Allowable Crush Resistance | Short Term | N/100mm | 1000 | |
| Long Term | 300 | |||
| Min. bending radius | Without Tension | 10.0×Cable-φ | ||
| Under Maximum Tension | 20.0×Cable-φ | |||
| Operation Temperature range（℃） | -10~+40 | |||
The properties of single mode optical fiber (ITU-T Rec. G.652.D)
| Item | Specification |
| Fiber type | Single mode |
| Fiber material | Doped silica |
| Attenuation coefficient @ 1310 nm @ 1383 nm @ 1550 nm @ 1625 nm |
£ 0.36 dB/km £ 0.32 dB/km £ 0.22 dB/km £ 0.30 dB/km |
| Point discontinuity | £ 0.05 dB |
| Cable cut-off wavelength | £ 1260 nm |
| Zero-dispersion wavelength | 1300 ~ 1324 nm |
| Zero-dispersion slope | £ 0.092 ps/(nm2.km) |
| Chromatic dispersion @ 1288 ~ 1339 nm @ 1271 ~ 1360 nm @ 1550 nm @ 1625 nm |
£3.5 ps/(nm. km) £5.3 ps/(nm. km) £18 ps/(nm. km) £22 ps/(nm. km) |
| PMDQ (Quadrature average*) | £0.2 ps/km1/2 |
| Mode field diameter @ 1310 nm | 9.2±0.4 um |
| Core / Clad concentricity error | £ 0.5 um |
| Cladding diameter | 125.0 ± 0.7 um |
| Cladding non-circularity | £1.0% |
| Primary coating diameter | 245 ± 10 um |
| Proof test level | 100 kpsi (=0.69 Gpa), 1% |
| Temperature dependence 0oC~ +70oC @ 1310 & 1550nm |
£ 0.1 dB/km |
Sheath marking
The color of marking is white, but if the remarking is necessary, the white color marking shall be printed newly on a different position.
An occasional unclear of length marking is permitted if both of the neighboring markings are clear.
The both cable ends are sealed with heat shrinkable end caps to prevent water ingress.
