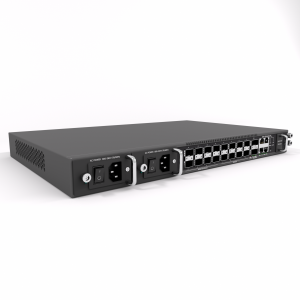

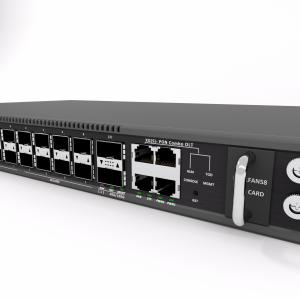

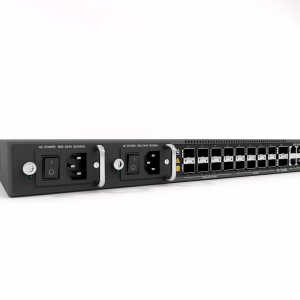

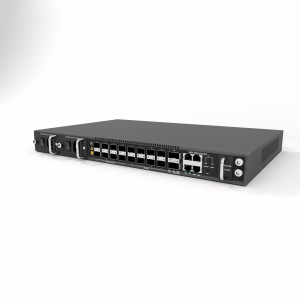

XGSPON XGPON OLT 8 Ports

8PORT XGSPON OLT is a highly integrated, large-capacity XG(S)-PON OLT for operators, ISPs, enterprises, and campus applications. The product follows the ITU-T G.987/G.988 technical standard, and can be compatible with three modes of G/XG/XGS at the same time. The product has good openness, strong compatibility, high reliability and complete software functions。 It can be widely used in operators’ FTTH access, VPN, government and enterprise park access, campus network access, ETC.

8PORT XGSPON OLT is only 1U in height, easy to install and maintain, and save space. Supports mixed networking of different types of ONU, which can save a lot of costs for operators.

Color:

Send email to us Add To Cart

Product Detail

1.Product overview

8PORT XGSPON OLT is only 1U in height, easy to install and maintain, and save space. Supports mixed networking of different types of ONU, which can save a lot of costs for operators.

2.Main Feature

l Rich Layer 2/3 switching features and Flexible management methods

l Support multiple link redundancy protocols such as Flex-Link/STP/RSTP/MSTP/ERPS/LACP

l Support RIP、OSPF、BGP、ISIS and IPV6

l Safe DDOS and virus attack protection

l PON port can support GPON/XGPON/XGSPON three modes

l Support Power redundancy backup, Modular power supply, Modular fans supply

l Support power failure alarm

3. Hardware Features

Attributes	8PORT XGSPON OLT
Exchange capacity	104Gbps
Packet forwarding rate	77.376Mpps
Memory and storage	memory：7168M; storage：2048M
Management port	Console
Port	8XG(S)-PON/GPON port, 810GE/GE SFP + 2*100G QSFP28
weight	6.5kg
fan	Fixed fans（three fans）
power	AC： 100～240V　47/63Hz；DC： 36V～75V；
Power consumption	MAX：90W
environment friendly	China ROHS EEE
Dimensions(Width * height * depth)	44027044mm
Environment temperature	Working Temperature：-10℃～55℃ Storge temperature：-40℃～70℃
environment humidity	Operating humidity: 10%～95% (non-condensing) Storage humidity: 10%～95% (non-condensing)

4. Software Features

Attributes	8PORT XGSPON OLT
PON	Comply with ITU-T G.987/G.988 standard40KM Physical differential distance,100KM transmission logical distance1:256 Max splitting ratio Standard OMCI management function Open to any brand of ONT ONU batch software upgrade
VLAN	Support 4K VLANSupport VlAN based on port, MAC and protocolSupport dual Tag VLAN, port-based static QINQ and fiexible QINQ
MAC	128K Mac addressSupport static MAC address settingSupport black hole MAC address filtering Support port MAC address limit
ring network protocol	Support STP/RSTP/MSTPSupport ERPS Ethernet ring network protection protocolSupport Loopback-detection port loopback detection
port control	Support two-way bandwidth controlSupport port storm suppressionSupport 9K Jumbo ultra-long frame forwarding
Port aggregation	Support static link aggregationSupport dynamic LACPEach aggregation group supports a maximum of 8 ports
Mirroring	Support port mirroringSupport stream mirroring
ACL	Support standard and extended ACLSupport ACL policy based on time periodProvide flow classification and flow definition based on IP header information such as source/destination MAC address, VLAN, 802.1p, TOS, DSCP, source/destination IP address, L4 port number, protocol type, etc.
QoS	Support flow rate limiting function based on custom business flowSupports mirroring and redirection functions based on custom business flowsSupport priority marking based on custom service flow, support 802.1P, DSCP priority Remark capability Support port-based priority scheduling function, support queue scheduling algorithms such as SP/WRR/SP+WRR
Safety	Support user hierarchical management and password protectionSupport IEEE 802.1X authenticationSupport Radius&TACACS+ authentication Support MAC address learning limit, support black hole MAC function Support port isolation Support broadcast message rate suppression Support IP Source Guard Support ARP flood suppression and ARP spoofing protection Support DOS attack and virus attack protection
Layer 3	Support ARP learning and agingSupport static routeSupport dynamic route RIP/OSPF/BGP/ISIS Support VRRP
System management	CLI、Telnet、WEB、SNMP V1/V2/V3、SSH2.0 Support FTP,TFTP file upload and download Support RMON Support SNTP Support system work log Support LLDP neighbor device discovery protocol Support 802.3ah Ethernet OAM Support RFC 3164 Syslog Support Ping and Traceroute
