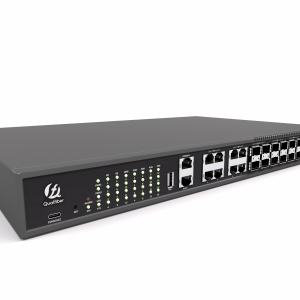

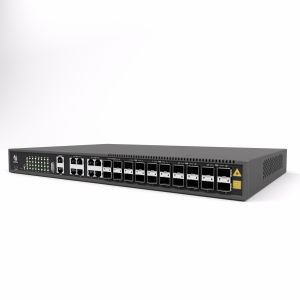

New Version GPON OLT 16 Ports

GPON OLT 16PON are highly integrated, medium-capacity GPON OLT for operators, ISPs, enterprises and park Application. The product follows the ITU-T G.984/G.988 technical standard. The product has good openness, strong compatibility, high reliability, and complete software functions. It can be widely used in operators’ FTTH access, VPN, government and enterprise park access, campus network access, ETC.


Color:

Product Detail

1.Product overview

GPON OLT 16PON are highly integrated, medium-capacity GPON OLT for operators, ISPs, enterprises and park Application. The product follows the ITU-T G.984/G.988 technical standard, The product has good openness, strong compatibility, high reliability, and complete software functions. It can be widely used in operators’ FTTH access, VPN, government and enterprise park access, campus network access, ETC.

They are only 1U in height, easy to install and maintain, and save space. Supports mixed networking of different types of ONU, which can save a lot of costs for operators.

2.Main Feature

l Rich Layer 2/3 switching features and Flexible management methods

l Support multiple link redundancy protocols such as Flex-Link/STP/RSTP/MSTP/ERPS/LACP

l Support RIP、OSPF、BGP、ISIS and IPV6

l Safe DDOS and virus attack protection

l Support Power redundancy backup, Modular power supply

l Support power failure alarm

l Type C management interface



3. Hardware Features

Attributes

GPON OLT 4PON

GPON OLT 8PON

GPON OLT 16PON

Exchange capacity 104Gbps
Packet forwarding rate 77.376Mpps
Memory and storage memory: 7168M, storage: 2048M
Management port Console, Type C
Port 4*GPON Port,4*10/100/1000M Base-T,4*1000M Base-X SFP/4*10GE SFP+ 8*GPON Port,4*10/100/1000M Base-T,4*1000M Base-X SFP/4*10GE SFP+ 16*GPON Port,8*10/100/1000M Base-T,4*1000M Base-X SFP/4*10GE SFP+
weight GPON OLT 4/8PON:≤5kg              GPON OLT 16PON:≤6.5kg
fan Fixed fans (three fans)
power AC: 100~240V 47/63Hz;DC: 36V~75V;
Power consumption MAX:75W
environment friendly China ROHS EEE
Dimensions(Width * height * depth) GPON OLT 4/8PON: 440mm*44mm*260mmGPON OLT 16PON: 440mm*44mm*320mm
Environment temperature Working Temperature:-10℃~55℃ Storge temperature:-40℃~70℃
environment humidity Operating humidity: 10%~95% (non-condensing) Storage humidity: 10%~95% (non-condensing)



4. Software Features

Attributes

GPON OLT 4PON

GPON OLT 8PON

GPON OLT 16PON

PON Comply with ITU-TG.984/G.988 standard20KM transmission distance1:128 Max splitting ratioStandard OMCI management functionOpen to any brand of ONT

ONU batch software upgrade

VLAN Support 4K VLANSupport VLAN based on port, MAC and protocolSupport dual Tag VLAN, port-based static QINQ and fiexible QINQ
MAC 16K Mac addressSupport static MAC address settingSupport black hole MAC address filteringSupport port MAC address limit
ring network protocol Support STP/RSTP/MSTPSupport ERPS Ethernet ring network protection protocolSupport Loopback-detection port loopback detection
port control Support two-way bandwidth controlSupport port storm suppressionSupport 9K Jumbo ultra-long frame forwarding
Port aggregation Support static link aggregationSupport dynamic LACPEach aggregation group supports a maximum of 8 ports
Mirroring Support port mirroringSupport stream mirroring
ACL Support standard and extended ACLSupport ACL policy based on time periodProvide flow classification and flow definition based on IP header information such as source/destination MAC address, VLAN, 802.1p, TOS, DSCP, source/destination IP address, L4 port number, protocol type, etc.
QoS Support flow rate limiting function based on custom business flowSupports mirroring and redirection functions based on custom business flowsSupport priority marking based on custom service flow, support 802.1P, DSCP priority Remark capability Support port-based priority scheduling function,support queue scheduling algorithms such as SP/WRR/SP+WRR
Safety Support user hierarchical management and password protectionSupport IEEE 802.1X authenticationSupport Radius&TACACS+ authenticationSupport MAC address learning limit, support black hole MAC functionSupport port isolation

Support broadcast message rate suppression

Support IP Source Guard Support ARP flood suppression and ARP spoofing protection

Support DOS attack and virus attack protection

Layer 3 Support ARP learning and agingSupport static routeSupport dynamic route RIP/OSPF/BGP/ISISSupport VRRP
System management CLI、Telnet、WEB、SNMP V1/V2/V3、SSH2.0Support FTP,TFTP file upload and downloadSupport RMONSupport SNTPSupport system work log

Support LLDP neighbor device discovery protocol

Support 802.3ah Ethernet OAM

Support RFC 3164 Syslog

Support Ping and Traceroute

5.Purchasing Information

Product name

Product description

GPON OLT 4PON

4*PON port, 4*10GE/GE SFP +4GE RJ45 uplink port, Dual power with optional

GPON OLT 8PON

8*PON port, 4*10GE/GE SFP +4GE RJ45 uplink port, Dual power with optional

GPON OLT 16PON

16*PON port, 4*10GE/GE SFP +8GE RJ45 uplink port, Dual power with optional
