Wall Mounting Fiber Optic Splice Closure QF-KSW-24A Indoor and Outdoor Installation

QF-KSW-24A fiber optic distribution box, Within a set of reliable fiber optic cable, cable fixed device. Selection of indoor and outdoor installation environment. Easy installation, reliable in quality.


Color:

Product Detail

Optical Splice Closure for 24 Core Wall Mounting Fiber Distribution Box QF-KSW-24A

QF-KSW-24A fiber optic distribution box, Within a set of reliable fiber optic cable, cable fixed device. Selection of indoor and outdoor installation environment. Easy installation, reliable in quality.



Product Details

1. Meet spectral and wiring of two Φ 10-15 optical fiber cables, and 8 figure or Φ3 soft cable, max capacity 24F.

2. Can be installed splitter(1:4,1:8,1:16),and FC or SC adapters.QF-KSW-24A is for adapters with 24pcs of FC or SC adapters , QF-KSW-24B/F is for module type splitter,2 pcs splitter(1:4,1:8)or 1 pcs splitter 1:16.

3. QF-KSW-24A/B available in an indoor and outdoor installation, QF-KSW-24F for indoor installations, installation method to pole-munting,wall-mounting.

4. Buckle type structure could seal the box and protect the lock.

5. Compound type turnover plate could be installed with module type splitter or adapters.

6. Combination of wall-mounting kit and pole-mounting kit, easier to install.

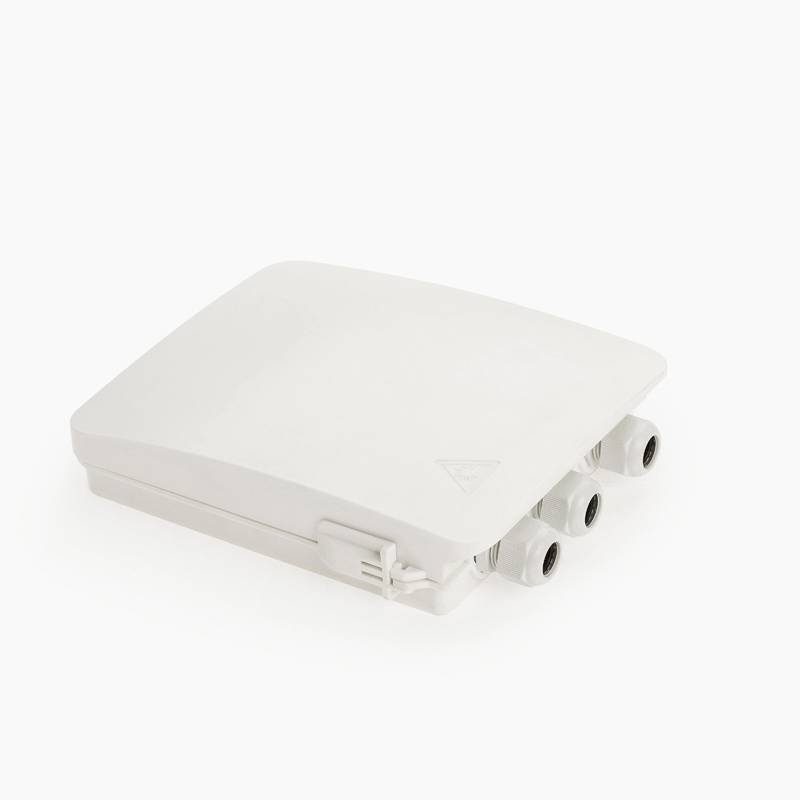

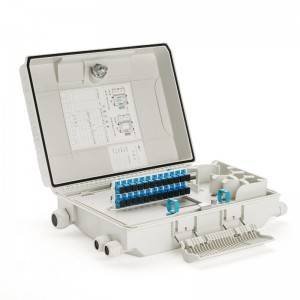

Note:Picture1~3 is QF-KSW-24A details,piture 4~6 is QF-KSW-24B details,picture 7~last one is QF-KSW-24F details.

Product parameters

Type QF-KSW-24A/B Size(mm) 374X264X112
Protection grade IP55 Max capacity 24F



Ordering guide

Type Size(mm) Weight(Kg) Inner carton size(mm) Out carton size(mm)
QF-KSW-24A 374X264X112 2.1-3 395X275X145 (1PCS) 575X415X490 (6PCS)
