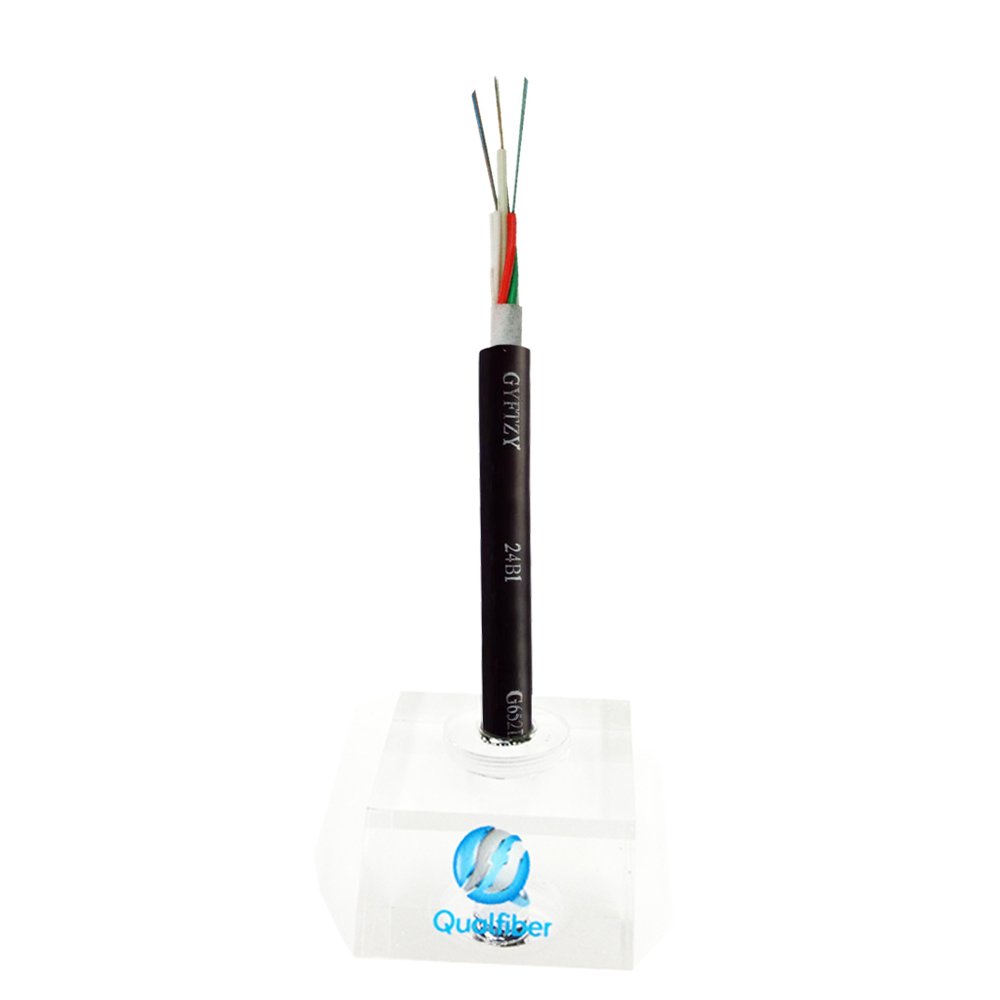

GYFTZY, Non-armored stranded loose tube cable features FRP as the central member, ensuring the resistance to electromagnetic interference. High strength loose tube is hydrolysis resistant and the tube filling compound ensures a critical protection of the fiber. The water-blocking material between a single polyethylene (PE) jacket and the loose tube is applied to keep the cable compact and watertight. It is suitable for aerial and duct installation, especially operating in electrical system or frequently lighting areas.
Color:
Description
GYFTZY, Non-armored stranded loose tube cable features FRP as the central member, ensuring the resistance to electromagnetic interference. High strength loose tube is hydrolysis resistant and the tube filling compound ensures a critical protection of the fiber. The water-blocking material between a single polyethylene (PE) jacket and the loose tube is applied to keep the cable compact and watertight. It is suitable for aerial and duct installation, especially operating in electrical system or frequently lighting areas.
Structure details
|
No. of fiber
|
6F
|
12F
|
24F
|
36F
|
48F
|
72F
|
96F
|
144F
|
|
No. of tube
|
1
|
2
|
4
|
3
|
4
|
6
|
8
|
12
|
|
Fiber per tube
|
6
|
6
|
6
|
12
|
12
|
12
|
12
|
12
|
|
No. of filler rod
|
4
|
4
|
1
|
2
|
1
|
0
|
0
|
0
|
|
Tube diameter (±0.1mm)
|
2.0
|
2.0
|
2.0
|
2.0
|
2.0
|
2.0
|
2.0
|
2.0
|
|
The thickness of loose tube
(±0.05mm) |
0.3
|
0.3
|
0.3
|
0.3
|
0.3
|
0.3
|
0.3
|
0.3
|
|
Nom. out diameter (±0.2mm)
|
8.6
|
8.6
|
8.6
|
8.6
|
8.6
|
9.2
|
10.8
|
13.4
|
|
Nom. jacket thickness
(±0.1mm) |
1.6
|
1.6
|
1.6
|
1.6
|
1.6
|
1.6
|
1.7
|
1.7
|
|
Loose tube
|
Material
|
PBT
|
Color
|
Standard spectrum
|
||||
|
Central strength member
|
Material
|
FRP
|
Diameter
|
1.4mm (6-48F)
|
||||
|
2mm (72-144F)
|
||||||||
|
Layer
|
PE (for 96F -144F only)
|
|||||||
|
Filler rod
|
Material
|
PP
|
Color
|
Black
|
||||
|
Water blocking system
|
Material
|
Filling gel
|
||||||
|
Out sheath
|
Material
|
PE
|
Color
|
Black
|
||||
Fiber Color
| No. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color |  |
 |
 |
 |
 |
|
| No. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color |  |
 |
 |
 |
 |
 |
Tube Color
| No. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color |  |
 |
 |
 |
 |
 |
| No. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color |  |
 |
 |
 |
 |
 |
Mechanical and environment performance
| Tensile strength | Long term（N） | 600N | ||||||
| Short term（N） | 1500N | |||||||
| Crush load | Long term | 300N/100mm | ||||||
| Short term | 1000N/100mm | |||||||
| Bending radius | Dynamic | 20D | ||||||
| Static | 10D | |||||||
| Storage Temperature | -20℃～+70℃ | |||||||
| Installation Temperature | -10℃～+60℃ | |||||||
Fiber Performance
| Fiber style | Unit | SM G652D | MM 50/125 | MM 62.5/125 | ||||
| Condition | mm | 1310/1550 | 850/1300 | 850/1300 | ||||
| Attenuation | dB/km | ≤0.36/0.22 | ≤3.0/1.0 | ≤3.0/1.0 | ||||
| Cladding diameter | um | 125±1 | 125±1 | 125±1 | ||||
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | ||||
| Coating diameter | um | 242±7 | 242±7 | 242±7 | ||||
Package
Packing material: Wooden drum.
Packing length: 2km per drum or customization.
