Color:

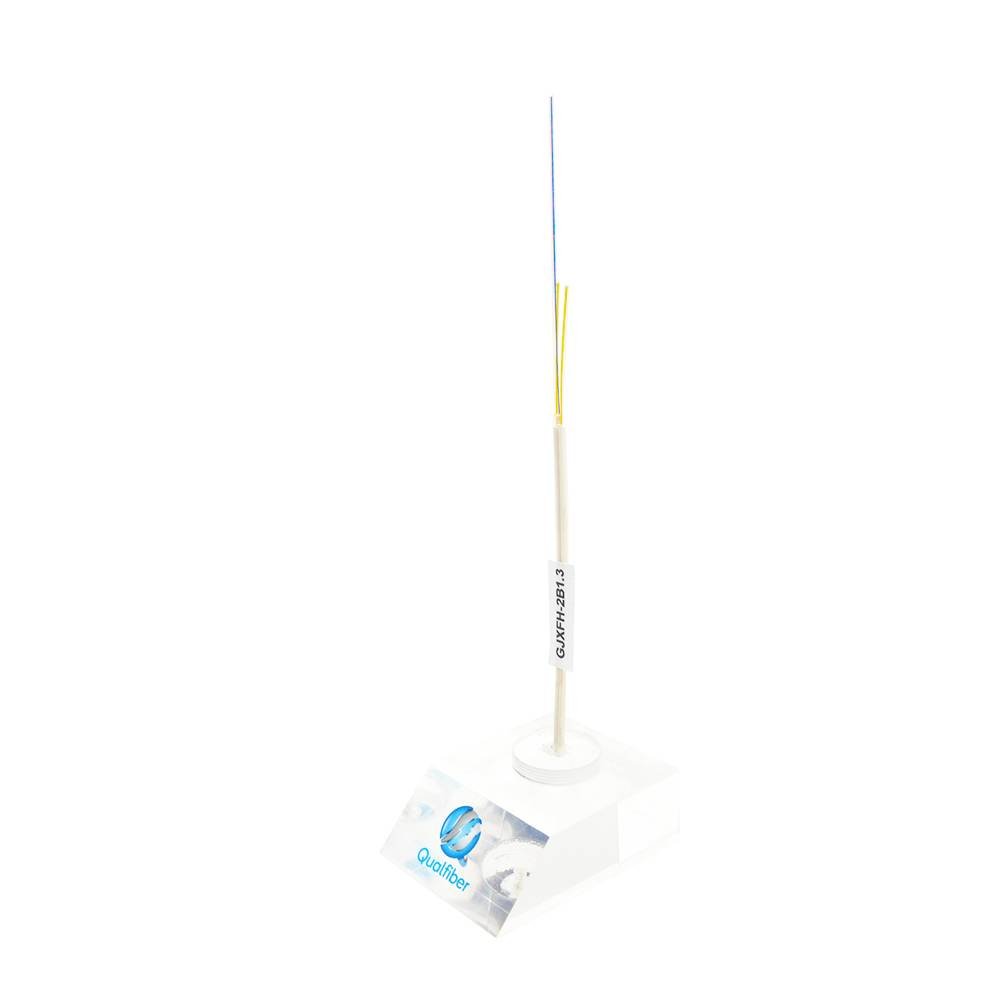

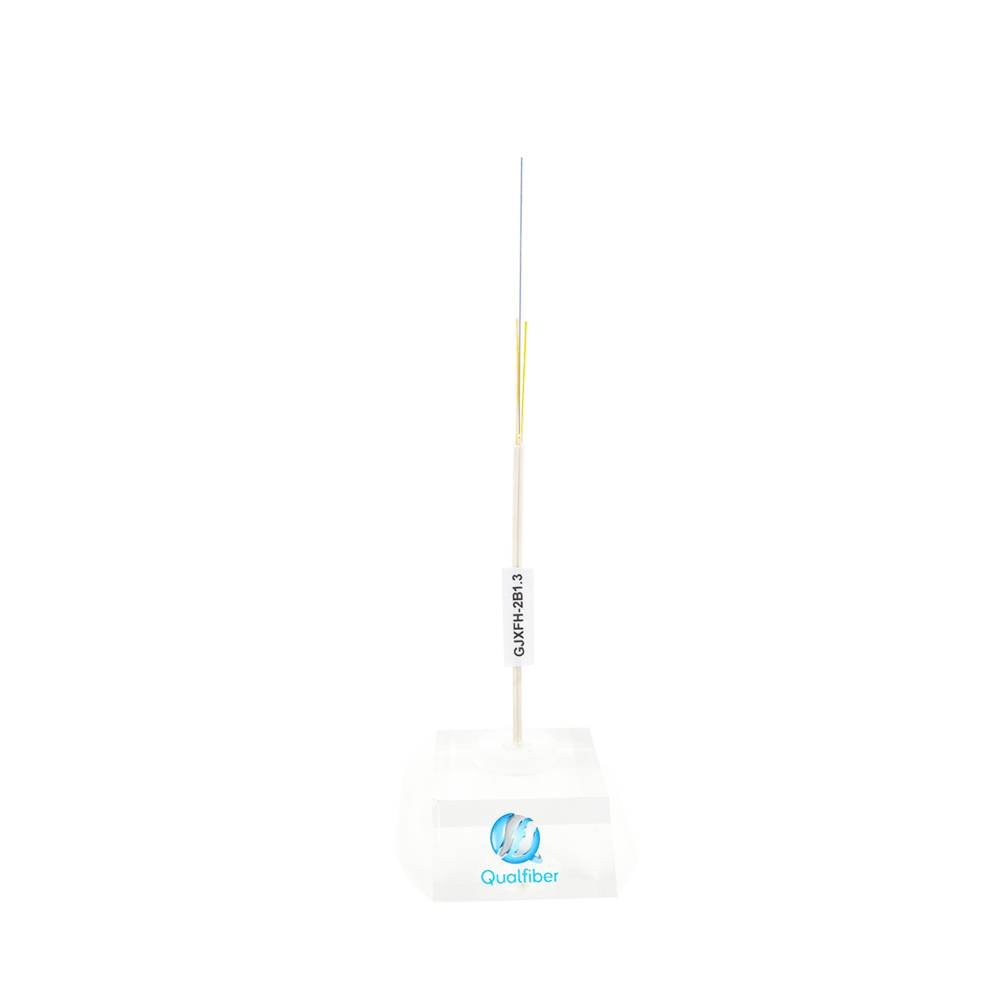

GJXFH (GJXFV) [Non-metal reinforcing member, low-smoke halogen-free (or PVC) outer sheath, butterfly drop cable]
The structure of the optical cable is to place the optical fiber (or optical fiber ribbon) between two parallel strengthening members and then extrude a layer of flame-retardant polyolefin sheath (LSZH), or polyvinyl chloride (PVC) sheath; the number of fiber cores can be 1-core, 2-core, 4-core.
Features
●Optical cable has small outer diameter, light weight and low construction cost
●Using cold connection technology, fast connection speed
●Optical cable has a high resistance to flattening and tension
●Glass reinforced fiber rods (G-FRP), aramid reinforced fiber rods (K-FRP) or thin steel wires are used as reinforcements, and the optical cable is soft and has good bending performance
●Using LSZH or PVC flame-retardant materials to meet the flame-retardant and environmental protection performance requirements of optical cables used indoors
●The optical fiber adopts the bending loss insensitive optical fiber that meets the requirements of ITU-T G.657A&G.657B standard, and the minimum bending radius is 15mm or less.
Application:
|
Number of optical fiber core |
/ |
1/2/4 |
|
|
Fiber type |
/ |
G.657A2 or others |
|
| Reinforcement |
Material |
mm |
FRP or kevlar rope |
|
size（on average） |
0.5 |
||
|
quantity |
2 |
||
|
Sheath |
Material |
mm |
Low smoke halogen free sheath |
|
Cable Size（on average） |
mm |
2.0×3.0 |
|
|
Cable Weight（approximate value） |
kg/km |
9.8（平均） |
|
|
Attenuation Coefficient |
1310nm |
dB/km |
0.50 |
|
1550nm |
0.40 |
||
|
Maximum tensile strength |
Long term |
N |
40 |
| Short term |
80 |
||
|
Maximum crush resistance |
Long term |
N/100mm |
500 |
| Short term |
1000 |
||
|
Bending radius |
mm |
10*outer diameters |
|
|
25*outer diameters |
|||
|
Separability |
The fiber optic cable is easy to separate. After the fiber optic cable is separated, the coloring of the fiber is not obviously peeled off, and the fiber is not easy to be drawn out from the remaining fiber optic cable |
||
|
temperature |
℃ |
-20~+50 |
|
|
mark |
QUALFIBER GJXFH-××B6b YD/T 1997-2009 ××××M Year （or customized） |
||
| NO. | 1 | 2 | 3 | 4 | 5 | 6 |
| Colour | Blue | orange | green | brown | gray | white |
| 7 | 8 | 9 | 10 | 11 | 12 | |
| red | black | Yellow | Violet | Pink | Aqua | |
Main mechanical & environmental performance test
| Characteristic | Characteristic | Characteristic | Characteristic |
| Optical properties | |||
| Attenuation | 1310nm 1550nm 1625nm |
≤0.35 ≤0.21 ≤0.23 |
dB/km dB/km dB/km |
| Attenuation Value | 1310～16250nm | ≤0.035 | dB/km |
| Difference attenuation between | 1285～1310nm 1310nm 1525～1575nm 1550nm 1480～1580nm 1550nm |
≤0.03 ≤0.02 ≤0.04 |
dB/km dB/km dB/km |
| Macro bending sensibility | @1550nm @1625nm @1550nm @1625nm |
≤0.25 ≤1.0 ≤0.75 ≤1.5 |
Radius 15mm, 10 circle Radius 15mm, 10 circle Radius 10mm, 1 circle Radius 10mm, 1circle |
| Zero dispersion wavelength | 1300～1324 | nm | |
| A zero-dispersion slope | ≤0.092 | ps/(nm2.km) | |
| dispersion conefficient | @1285-1340nm @1550nm @1625nm |
-3.4-3.4 ≤18.0 ≤22.0 |
ps/(nm2.km) |
| Cable cut-off wavelength（λcc） | ≤1260 | nm | |
| Mode field diameter （MFD） | 1310nm 1550nm |
8.4-9.2 9.3-10.3 |
μm μm |
| Attenuation discontinuities | 1310nm 1550nm |
≤0.05 ≤0.05 |
dB dB |
| Geometric characteristics | |||
| Core diameter | 0.7 | μm | |
| Cladding Diameter | 125±0.7 | ||
| Cladding roundness | ≤0.7 | % | |
| Coating diameter | 245±7 | μm | |
| Coating / packagae concentricity error | ≤12.0 | ||
